Motorized Rotating Chandelier Lift System 100kg (220lbs) Capacity

Heavy-Duty 100kg (220lbs) Motorized Chandelier Hoist System

The Hontrix heavy-duty motorized chandelier hoist system is engineered to safely manage massive, luxury lighting fixtures weighing up to 100kg (220 lbs). Serving as a premium chandelier motorized lift system, this high-capacity setup allows maintenance teams to effortlessly lower, raise, and rotate grand crystal fixtures for scheduled dusting, electrical inspections, and bulb replacements.

This industrial-strength electric chandelier hoist is the ideal architectural solution for high-ceiling environments, including luxury hotel grand ballrooms, historic churches, expansive theaters, commercial bank atriums, and residential high-ceilings. By combining a structural winch with synchronized 360° rotation, this specialized chandelier crane hoist completely eliminates the need for hazardous scaffolding or tall A-frame ladders, making high-altitude fixture cleaning a secure, streamlined task.

Advanced Engineering Features of Our Chandelier Electric Hoist

• High-Torque Winching Power (100kg / 220lbs Rating):

  Built with a reinforced internal motor mechanism, this heavy-duty chandelier electric hoist delivers smooth, vibration-free lifting control, eliminating stress and structural sway on fragile, premium crystal glass elements.

• Synchronized 360° Motorized Rotation:

  Chandelier lift manufacturer advanced motorized chandelier hoist incorporates an internal rotating collar. The fixture can spin freely during maintenance, granting field crews full access to dense interior bulb arrays without manual twisting.

• Patented Dual-Cable Anti-Fall Safety Interlock:

  Safety is paramount for 100kg payloads. This system includes a patented fail-safe mechanical brake. If one high-strength wire rope registers a loss of tension, the secondary safety mechanism engages instantly to lock the chandelier in mid-air.

• 10x Safety Factor Aircraft Cables:

  The internal winch drum is equipped with specialized, extra-thick galvanized steel cables engineered with an ultimate tensile safety factor rating of 10 or above, ensuring maximum resistance to fraying and elongation.

• Smart Circuit 10-Minute Standby Lock:

  The system wires directly into the same electrical circuit as your primary lighting. For premium building security, the chandelier hoist system initiates an automatic 10-minute standby sleep mode, physically cutting power to the lowering control to prevent tampering or accidental activation.

Technical Specifications: 100kg Capacity Motorized Chandelier Hoist

Architectural Upgrade Options & Structural Mounts

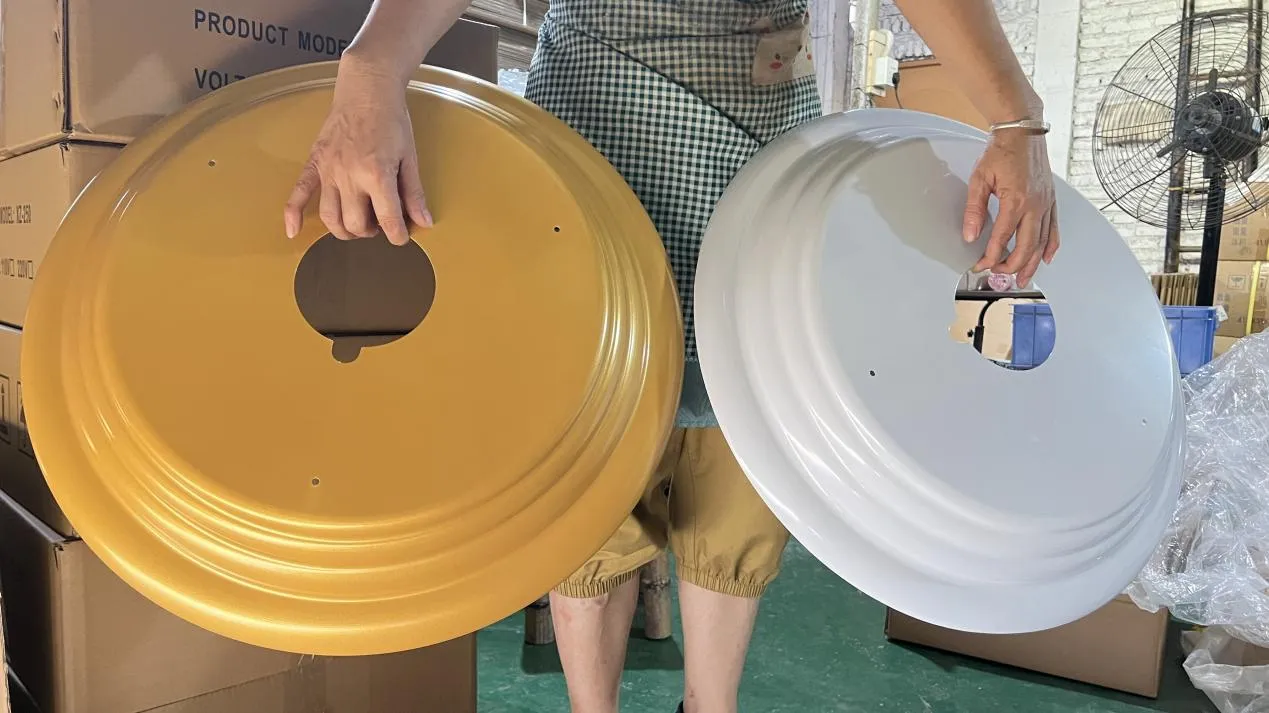

• Powder-Coated Flush Decorative Cover:

  Crafted from premium structural steel, this matching trim plate hides the ceiling structural opening once the fixture is fully raised. It shields the internal chandelier electric lift from ambient dust while maintaining a seamless, flush ceiling aesthetic.

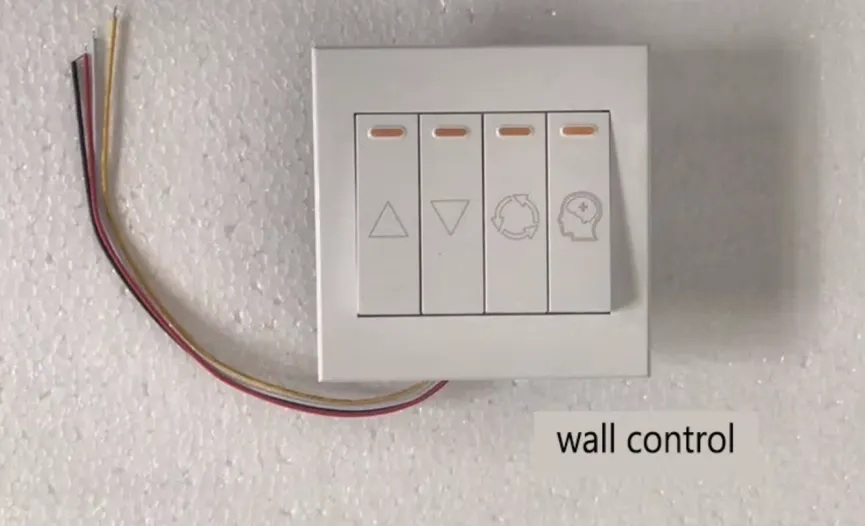

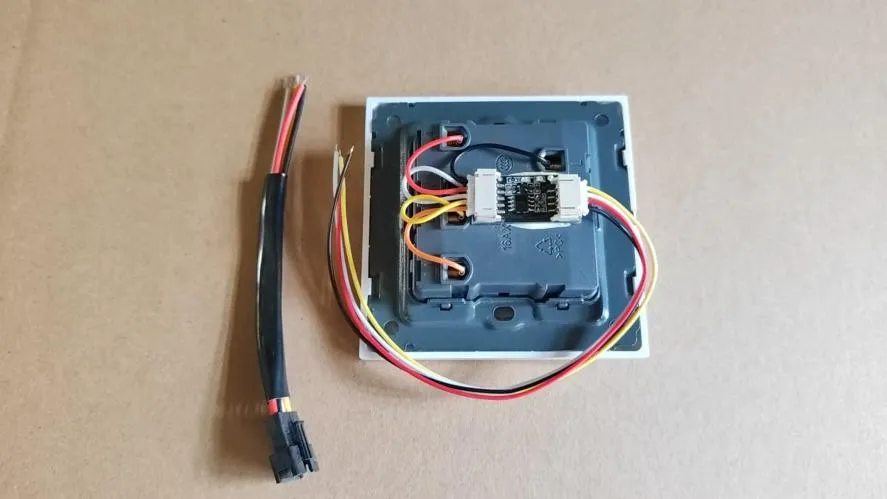

• Hardwired Manual Line Switch:

  For added redundancy alongside our digital wireless remotes, project managers can opt for a hardwired wall-mounted line switch to guarantee precise, localized height adjustments.

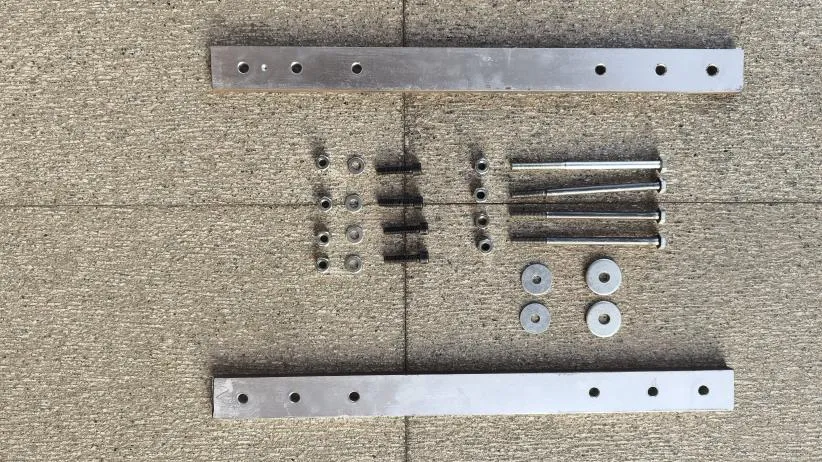

• Reinforced Q235 Attic Bridging Bars:

  For wooden structural framing, we provide specialized electroplated Q235 steel span bars designed to distribute the 100kg weight safely across structural joists. For locations lacking attic access, the system can be securely anchored below the ceiling beams by the  chandelier lift factory and hidden via our decorative shroud kits.

Motorized Rotating Chandelier Lift System 100kg (220lbs) Capacity Specifications

Who Should Choose the 100kg (220lbs) Model?

The Hontrix 100kg (220lbs) Motorized Rotating Chandelier Lift System is engineered specifically for buyers who need a powerful, commercial-grade lifting solution with smooth 360° rotation, without the massive installation footprint of industrial winches.

If your light fixture exceeds standard lightweight residential limits (50kg/110lbs) but sits within the medium-to-heavy range, this 100kg model offers the ideal balance of load capacity, safety margins, and ultra-quiet operation.

Key Technical Considerations & Specifications Checklist

Choose the 100kg model if your installation matches the following technical requirements and operational specs:

• Fixture Weight Match (40kg – 90kg): Your chandelier weighs between 40kg (88lbs) and 90kg (200lbs). Operating slightly below the 100kg (220lbs) maximum payload guarantees an optimal safety buffer and prolonged motor lifespan.

• Ceiling Height & Travel Distance (Standard 6m–8m / 20ft–26ft Cable Drop): Designed for high ceilings ranging from 15 feet to over 30 feet. With a generous stroke/travel length, it effortlessly lowers your heavy fixture down to table or floor level for safe bulb changes and cleaning.

• Low Noise Requirement (< 45 dB – 50 dB): Powered by an ultra-quiet precision-geared motor, operating noise stays below 45–50 dB (equivalent to a quiet residential library or soft background whisper). It lowers and rotates smoothly without distracting noise during hotel events or family gatherings.

• Smooth Lifting Speed (~1.2m – 1.8m per minute): Engineered with a steady, controlled lifting speed of approximately 1.2m–1.8m/min (4–6 ft/min). This slow, stabilized speed prevents heavy crystal pendants or glass elements from swaying or clashing during elevation.

• Motor Power Output (~150W – 250W Efficient Motor): Driven by an energy-efficient high-torque motor drawing 150W–250W, delivering high lifting force while maintaining low energy consumption and thermal protection against overheating.

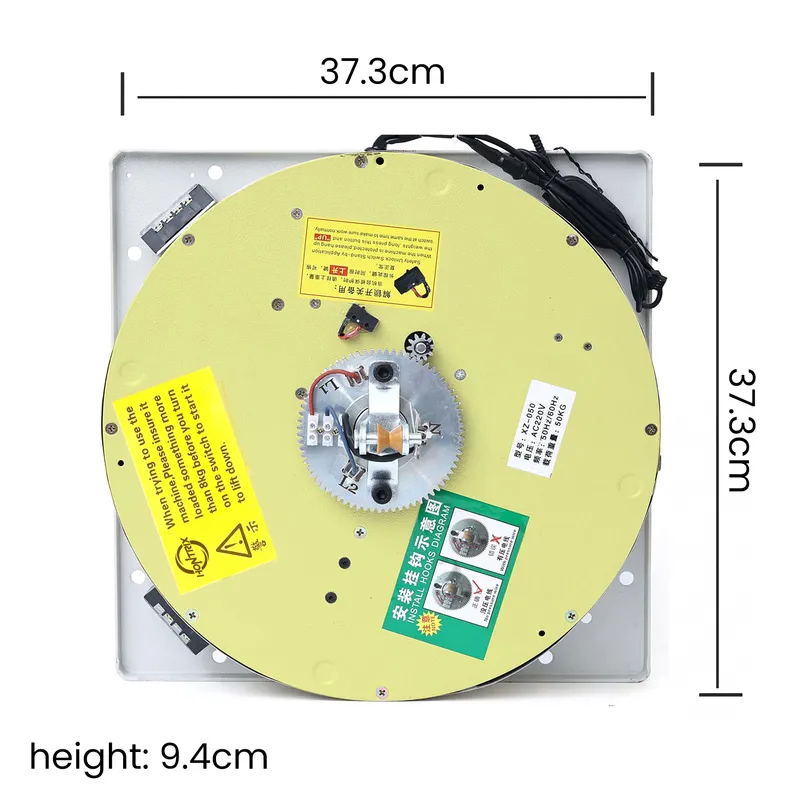

• Attic / Ceiling Clearance Space Required (~45cm – 60cm Height Allowance): Ensure your ceiling structure or attic space has at least 45cm–60cm (18"–24") of vertical clearance above the finished ceiling line to house the motorized winch assembly and rotary housing securely.

• Voltage Compatibility (AC 110V – 120V / AC 220V – 240V, 50/60Hz): Available in universal dual-voltage configurations to suit global markets—including 110V/120V for North America and 220V–240V for Europe, Asia, Australia, and the Middle East.

• Comprehensive Warranty Coverage (2-Year Factory Warranty): Backed by a 2-Year Limited Factory Warranty covering the motor mechanism, rotation gear assemblies, electronic control receiver, and wireless remote system.

Commercial Chandelier Hoist System Procurement FAQ

Q: Can this 100kg chandelier crane hoist support fixtures with high-power multi-bulb arrays?

A: Yes, absolutely. Our heavy-duty motorized chandelier hoist system features high-capacity internal electrical contacts designed to route heavy currents safely down to large-scale fixtures. When docked at the ceiling line, it delivers stable, full electrical current to support complex multi-tier bulb layouts.

 Q: What happens to the rotation functionality when the chandelier is fully raised?

A: Once the chandelier electric lift reaches its top docking position and locks into place, the rotational function stops, and the fixture remains locked in a stable orientation. The rotation is strictly activated during the lowered state to assist maintenance crews during cleaning cycles.

Q: Do you provide bulk pricing and factory drawings for M&E engineering contractors?

A: Yes. As an established chandelier lift manufacturer, Hontrix works closely with electrical wholesalers, lighting distributors, and international construction contractors. We provide full CAD clearance blueprints, custom lifting ranges up to 12 meters, and highly competitive factory-direct volume pricing.
