Motorized Rotating Chandelier Lift System 50kg(110lbs) Capacity

Commercial-Grade 50kg (110lbs) Motorized Rotating Chandelier Hoist System

The Hontrix motorized rotating chandelier hoist lift system is a commercial-grade, heavy-duty solution engineered to safely lower, raise, and rotate heavy light fixtures for seamless maintenance, dust cleaning, and bulb replacement. Supporting a maximum weight capacity of 50kg (110 lbs), this advanced chandelier hoist kit is the ultimate choice for high-ceiling residential atriums, luxury hotels, grand churches, theaters, and modern commercial lobbies.

Designed for uncompromising safety and structural convenience, this smart chandelier lift mounts securely above the ceiling line. Its synchronized 360-degree rotation functionality grants maintenance crews unrestricted access to all angles of the fixture without hazardous manual repositioning or wobbling, making lighting upkeep an effortless, one-person task.

Advanced Engineering Features of Our Chandelier Hoist Kit

• Customizable Lifting Range (6m- 12m):

  Our standard chandelier hoist system comes with a default 6m (19.69ft) travel distance, which can be custom-extended up to 12m (39.37ft) during manufacturing to fit customized architectural ceiling heights.

• Synchronized 360° Rotation Functionality:

  This premium chandelier light hoist allows the fixture to rotate smoothly while suspended or during ascent/descent, ensuring high-efficiency bulb replacement and safe detailing from a fixed scissor lift or ground level.

• Patented Dual-Cable Anti-Fall Technology:

  Engineered with a mechanical catch interlock, the system guarantees that if one primary steel cable encounters slack or failure, the backup mechanism instantly locks the fixture securely in place.

• Heavy-Duty Q235 Steel Construction:

  The main winch chassis is stamped from industrial-grade steel and treated with a high-adhesion, electrostatically applied powder coating to eliminate long-term rust risks and dust accumulation in attic spaces.

• 10x Safety Rated Galvanized Cables:

  Equipped with high-tensile, aircraft-grade galvanized steel wire ropes engineered with a safety factor score of 10 or higher, ensuring zero cable stretching or core fraying under maximum load.

• Smart Circuit Power Interlock:

  The system wires seamlessly directly into your existing lighting circuit. For advanced electrical safety, the chandelier hoist features an automatic 10-minute standby sleep mode that physically locks out the lowering function to prevent accidental remote or switch activation by unauthorized users. Chandelier lift manufacturer provides excellent protection against rust and dust buildup

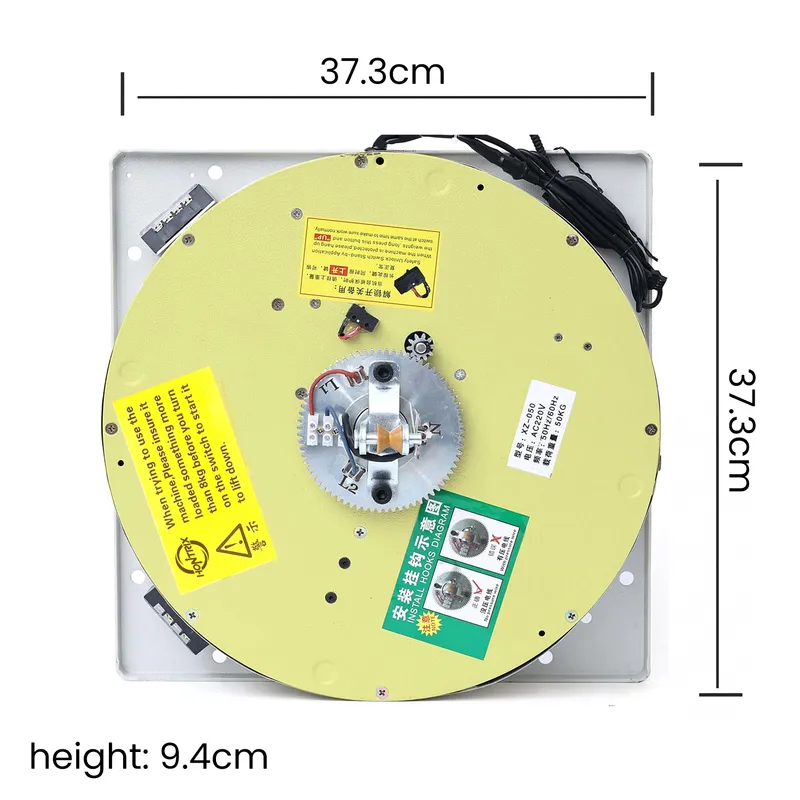

Technical Specifications: 50kg Capacity Chandelier Hoist

Optional Accessories & Structural Installation Kits

• Aesthetic Ceiling Decorative Cover:

  Formed from powder-coated steel, this low-profile trim plate completely covers the ceiling opening aperture when the fixture is fully raised, keeping the chandelier hoist lift system invisible and protecting internal gears from dust.

• Hardwired Wall Switch Control:

  In addition to standard wireless remote controls, an optional hardwired manual wall line switch can be integrated for localized, secure positioning control by facility managers.

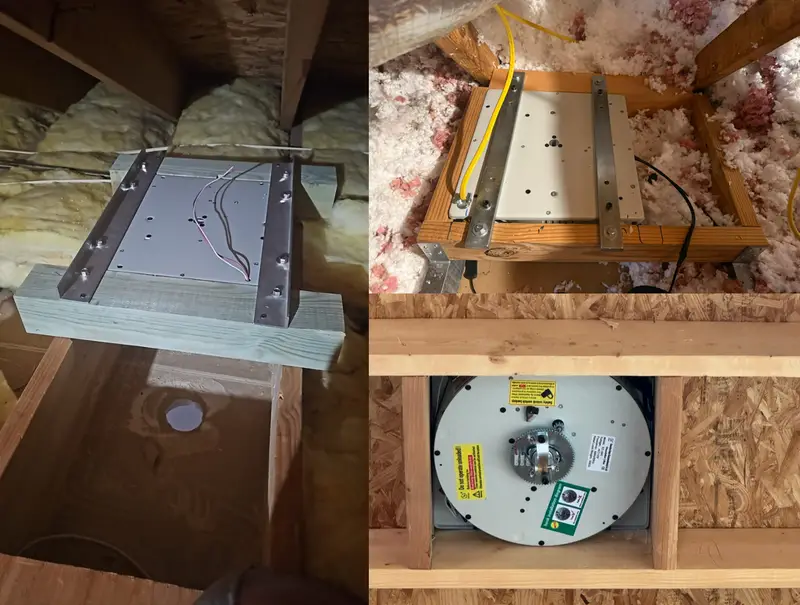

• Attic Joist Mounting Brackets (Q235 Bars):

  For properties with wooden structural framing, we supply specialized electroplated Q235 steel span bars designed to bridge across ceiling joists. For buildings lacking accessible attic crawl spaces, our chandelier lift factory provides specialized under-joist mounting hardware hidden by our custom decorative shrouds.

Motorized Rotating chandelier lift system 50kg Specifications

Chandelier Hoist System Procurement & Installation FAQ

Q: Can the rotation feature be turned off during operation?

A: Yes. The 360° rotation on our specialized chandelier light hoist is designed for precise maintenance control. You can choose to raise and lower the fixture with or without engaging the rotational axis depending on your ongoing cleaning or maintenance requirements.

Q: How does the shared power circuit function with the chandelier's bulbs?

A: Our smart chandelier hoist kit routes electrical current directly down to the fixture via integrated contact tracks or specialized internally coiled wiring. When the hoist is docked at the ceiling, the light operates normally. When lowered, power to the light is cut for safe bulb replacement.

Q: Does Hontrix provide customized OEM branding and wholesale distribution pricing?

A: Yes, absolutely. As a dedicated chandelier hoist manufacturer, we provide specialized distribution pricing, customized packaging, and voltage adaptations ($110\text{V} / 220\text{V}$) for lighting retailers, M&E contractors, and electrical wholesalers globally.
